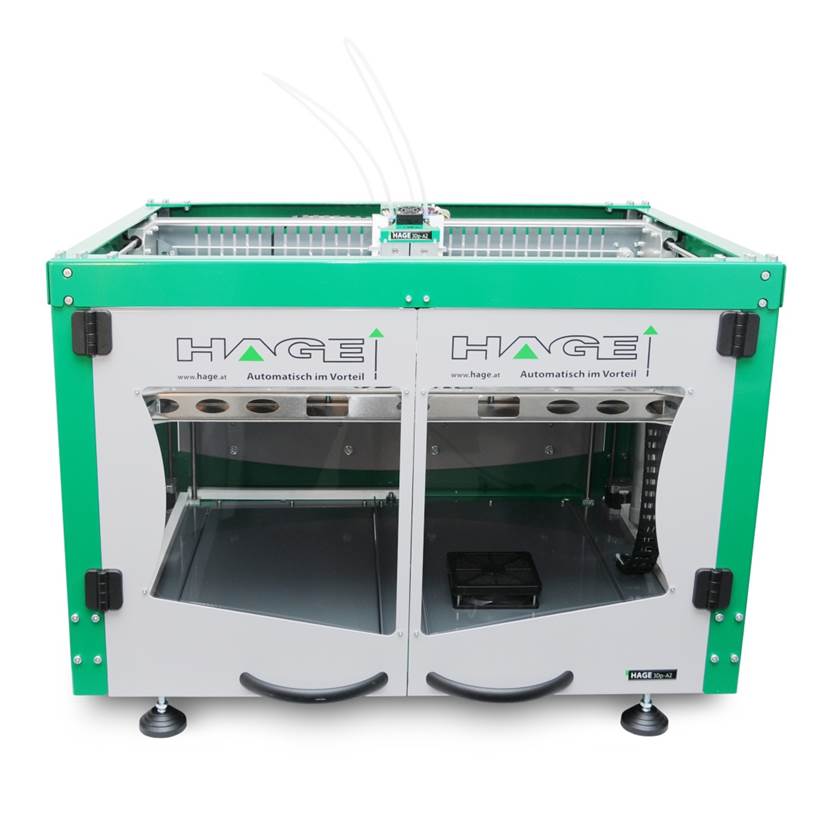

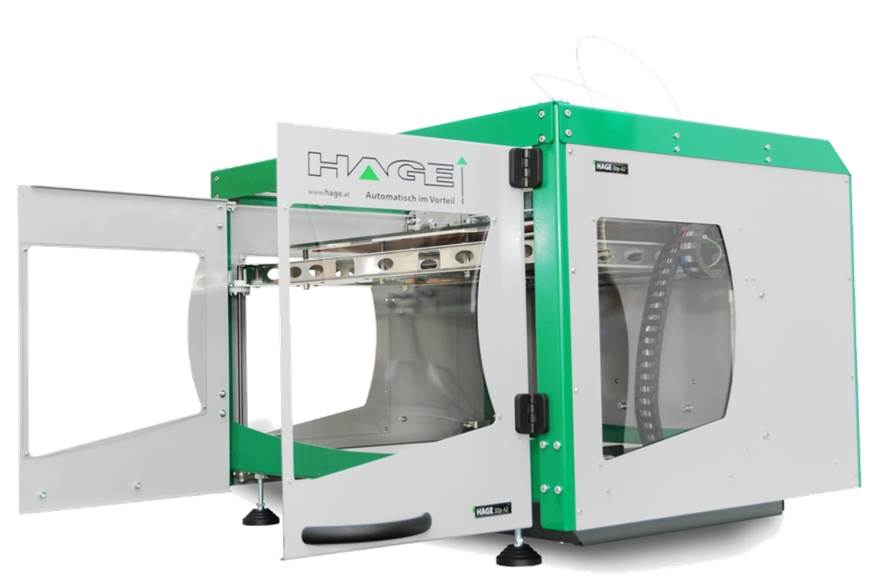

HAGE Industrial 3D Printer 140L for additive manufacturing

HAGE3D – the new dimension

The precise HAGE3D printing solutions for most dynamic FFF rapid prototyping processes (Fused Filament Fabrication) guarantee detailed and highly reliable results.

More space for accelerated processes

The really big printing chambers are available for all kinds of print-outs. Positioning accuracy
up to 0.1 mm ensures a precise three-dimensional impression.

From special purpose machines to 3D-printers

Whether inputs and visions come from the market, from customers or from employees: at HAGE, we review ideas regarding their potential and invest in their realization. For example, one of HAGE’s development engineers had the
vision of designing a 3D printing system for industrial use. Today: The solid HAGE3D printing systems are successfully in use and Europe-wide research projects are currently being conducted.

Versatile usage

• From design and prototype, to presentation objects and functional parts
• Allows for individual configurations, such as printing three materials
• Flexible part sizes

Precision makes an impression

• High quality of printing thanks to precision mechanical engineering – even at high speeds
• Evenness of the printing surface reduces waste and increases print quality
• The closed-loop stepping motor technology avoids step losses and provides exact positioning

Flexible printing

• Low filament costs thanks to flexible choice of materials (no vendor lock-in)
• Wide range of usable materials

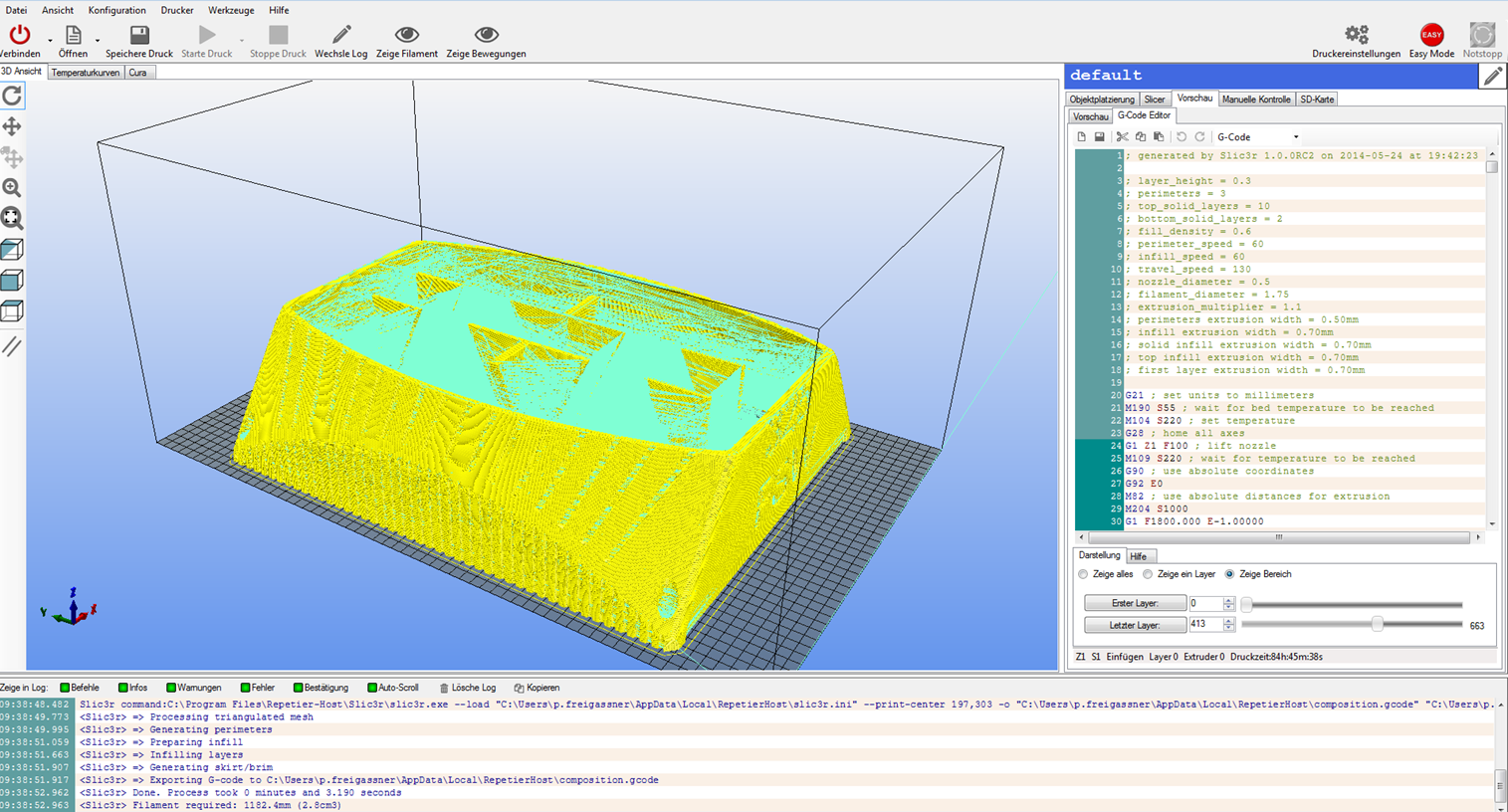

Professional slicing-software

Improve your print quality with Simplify3D®, the powerful 3D printing software that gives you total control for amazing 3D prints:

• Quick and Easy Startup
• High Performance Slicer
• Customizable Support Structures
• Animated Preview Mode
• Optimized Dual Extrusion
• Advanced Multi-Part Printing

Specifications:

 Printing process: FFF (Rapid Prototyping)
 Construction type: completely assembled
 Power supply: 230V / 24V DC
 Compressed air supply required
 External dimensions :1450 x 1250 x 1060 mm
 weight: ca. 400 kg
 LED Innenraumbeleuchtung
 manufacturer: HAGE Sondermaschinenbau GmbH & Co KG
 manufacturer's warranty: 12 months

 XXL printer volume size: 700 x 500 x 400 mm
 Print bed: heated up to 110°C, heating power 1000 W

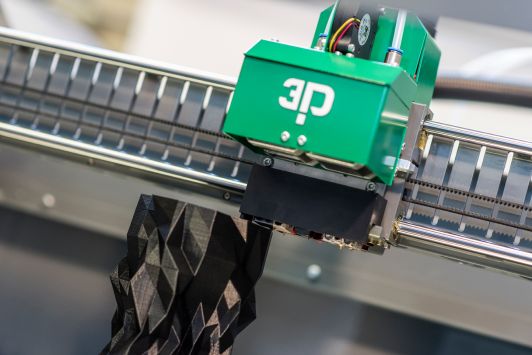

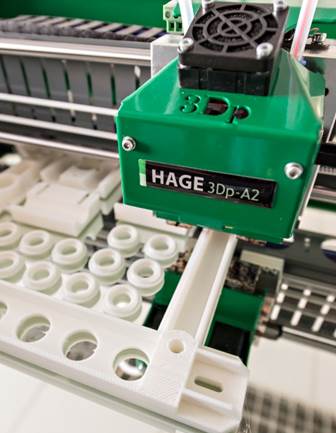

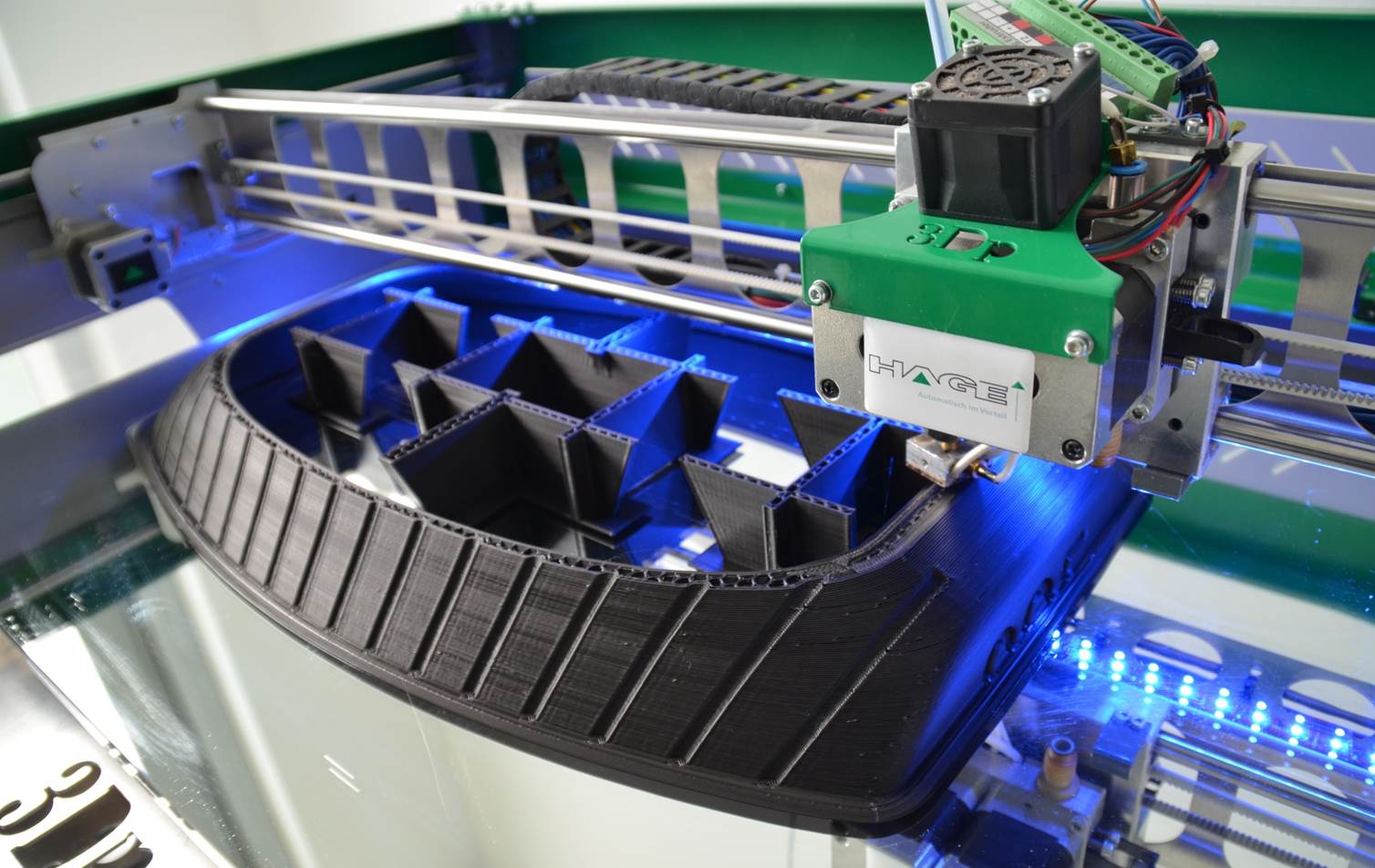

 Print head: dual extruder with hot-end temperature up to 300°C (standard) optional: up to 450°C*
 Hage Filament Feeding System HFFS™
 Active component cooling
 Nozzle diameter: 0,3mm to 0,5mm (0,4 mm standard)
 Positioning accuracy: in xy < 0,05mm
 Layer thickness: from 50 μm
 Movement speed: XY ~ 400 mm/s, Z ~ 300mm/min
 Printing speed: up to 150 mm/s( depends on material)

 Touch-Screen 7“
 Industry control Sigmatek, HAGE software
 2 workstation (up to 4 devices) Slicing software inclusive (Simplify3D)
 Stand Alone printing with USB
 Ethernet interface
 Remote access
 Event-Mailing Funktion
 Allows USB „Stand alone“ print 84

 Flexible choice of materials (no vendor lock-in)
 Filament diameter: 1,75mm
 Printable materials: ASA, M-ABS, PET-G, PC-ABS sowie Nylon*, PSU*, PEI*, PC-PEI* Peek*

Support & Service

• Completely assembled, adjusted and put into operation on site
• On-site service, intensive user training, user support and 3D engineering
