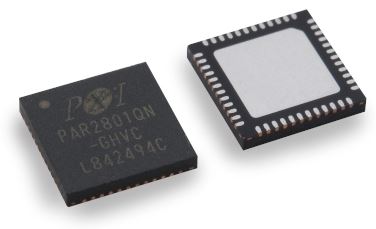

PAR2801QN-GHVC

原相
0.00
RMB

Overview

  • Fully qualified Bluetooth Low Energy 5.0 peripheral device
  • Cortex M0 32-bit MCU with max. 32MHz clock rate
  • Highly integrated SOC with 128kB Flash memory and 80kB SRAM
  • DC-to-DC converter with boost or buck mode
  • Communication interfaces: I2C master, SPI master, UART
  • Peripherals: PWM, SAR ADC, quadrature decoder
  • Support SWD (Serial Wire Debug) mode

Features

UART,
SPI Master,
I2C Master,
PWM,
AES,
RNG,
ADC,
Quad.
Decoder

Features

802.15.4 (Zigbee, Thread)

Block Diagram

__

Application Note

Wireless Mouse Transmitter; Wireless Keyboard Transmitter; Dongle (Receiver); Data Transmission/Transparent Transmission

Development Board

__

Core Type

ARM Cortex-M0

CPU Clock Speed

__

CPU Architecture

__

CPU Features

__

Bluetooth Version

Bluetooth Low Energy 5.0

Operating Frequency [Max] (MHz)

32 MHz

Flash (kB)

128

Cache

-

SRAM (kB)

80

EEPROM (kB)

24

Debugging

__

Upgrade Type

Manual

Crystal

no

on chip (PLL)

no

crystal (optional)

no

on-chip RC

no

External clock

no

Timers [Number, bits]

no

Real-Time Clock

no

Watchdog timer

no

GPIO

30

Pins

48

Pitch

__

Channels

__

ADC [Number, bits]

__

True Random Number Generator

__

Analog comp

no

low-power comp

no

Temperature sensor

no

NFC Tag

__

SPI

__

DAC [Number, bits]

__

UART

__

SSI

__

PWM [Number, bits]

__

I2C

-

TWI

no

QDEC

-

PDM

-

USB

no

SPI

no

Quad SPI

-

I2S

no

Debug interface

-

Human Machine Interface

-

Programmable channels

__

Fixed channels

__

Channel groups

__

Supply Voltage [Min to Max] (V)

Buck: 1.9~3.6 / Boost: 0.9~1.65

no

On-chip VBUS

no

Regulated supply for external components

-

Power fail

no

Crypto Accelerator

__

Public Key Hardware Accelerator

__

Accelerator

__

Security

__

__

Current

Sleep Mode Current <8 μA
Deep Sleep Mode Current <3μA

Sensor Controller

__

Standby

__

Transceiver Compatible

__

Receiver Sensitivity

-93 dBm

Output Power

Max. TX Power: +4dBm

Frequency Regulation

__

Protocols

-

Bluetooth 5 PHYs

-

bluetooth 5.1 support

-

Dimension

6mm*6mm

Package Type

QFN

DSP RAM

__

DSP Clock Speed

__

DSP Clock Speed

__

Voice Services

__

General

__

  • Datasheet:
